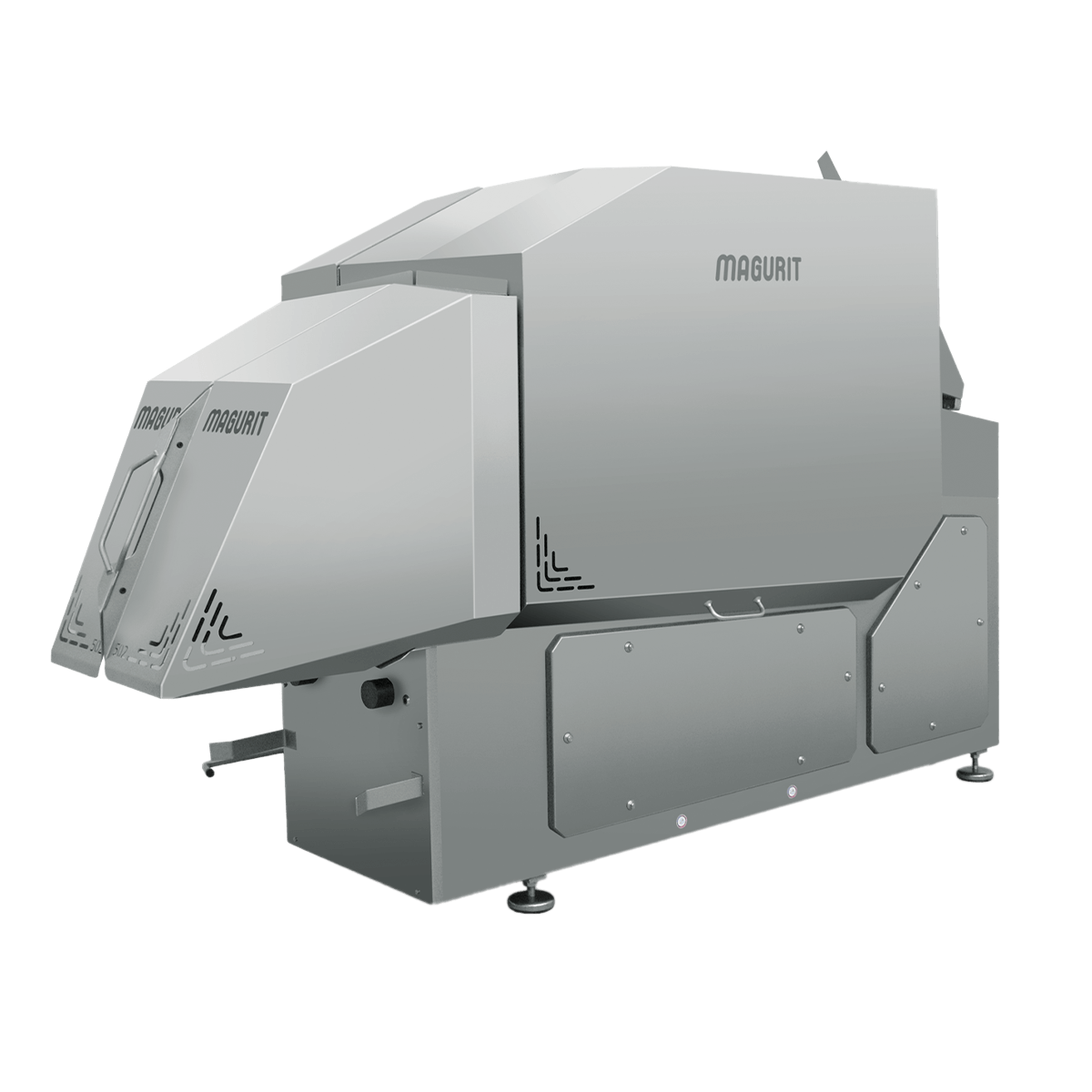

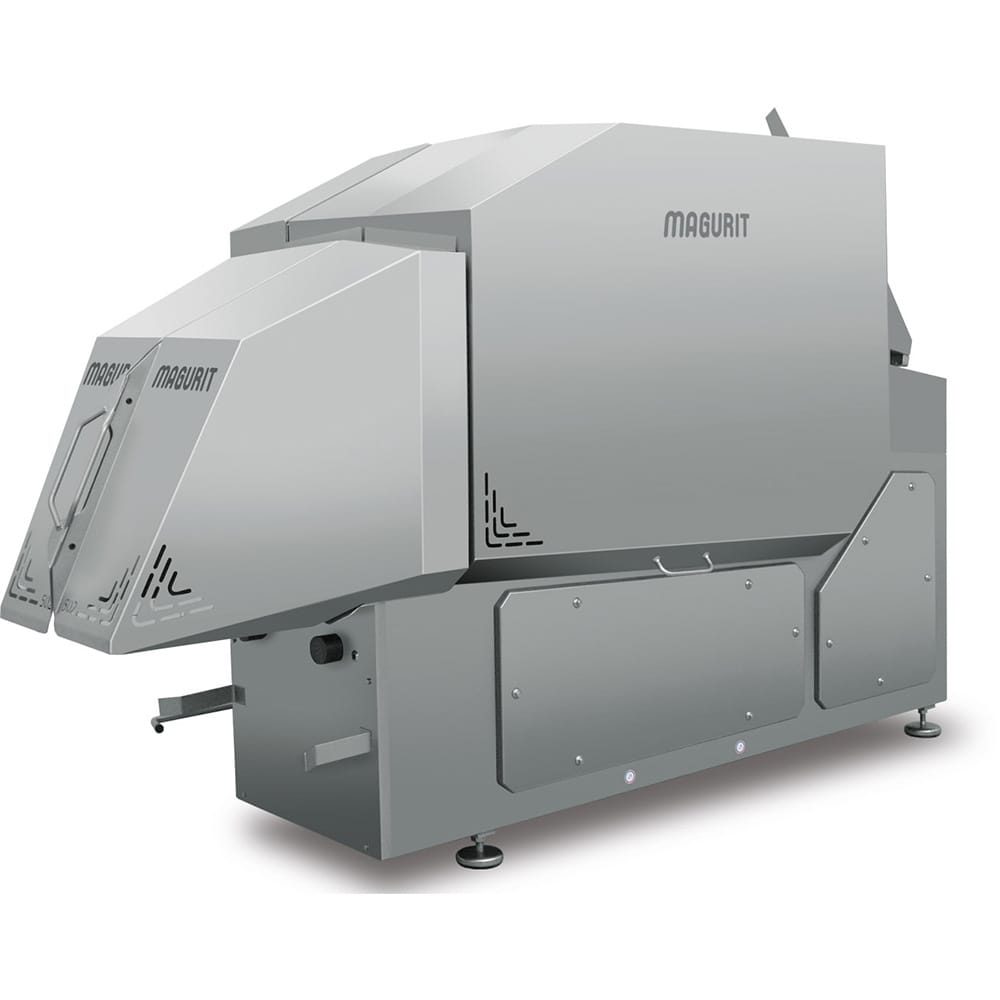

Ideal machine for fully automatic cutting of cubes or strips DICECUT® 502

The DICECUT® 502 with its cutting area of 480 x 240 mm (183⁄4”x9”) is designed for processing standard EURO or 60 lbs-US blocks, while the DICECUT® 506 with its cutting area width of 630 mm (24 3⁄4”) also offers the possibility to process standard blocks transversely, thus achieving 50% more performance than the DICECUT® 502, and platefreezer blocks without pre-cutting or pre-compressing. The machines can be operated incl. loading and discharge by a single person, and can of course also be integrated into an automatic processing line incl. weighing and packaging.

  • Frozen block dicer for sizes between von 10 x 10 mm / 3/8“ x 3/8“ to 50 x 50 mm / 2“ x 2“
  • Ideal processing temperature between -6 °C / 20 °F. and – 18 °C / 0 °F., depending on the product
  • Max. block size: 420 x 240 x 900 mm / 16 ½“ x 9 ½“ x 35 3/8“
  • Suitable for US- or EURO2 blocks, or smaller
  • Integration in automatic processing line incl. block loading and discharge of the cut product.
  • Capacity: Between 400 kg / 880 lbs and 3000 kg / 6000 lbs per hour
